Light Switches

LX1041036-UN-14JUN06

LX1041415-UN-11OCT06

L102655-UN-15AUG94

A - Light switch

B - Switch for high-/low-beam headlights

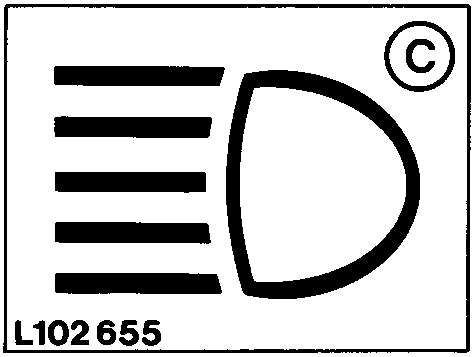

C - High beam indicator

CAUTION: Comply with local lighting regulations.

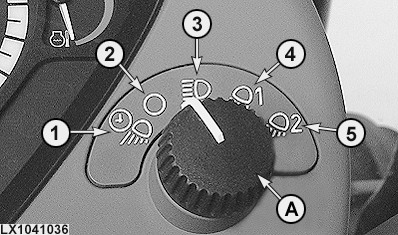

Light switch (A) can be set to the following positions:

• 1 = Egress light “on”
• 2 = Light switch in “off” position
• 3 = Headlights, tail lights and warning lights “on”
• 4 = Headlights “on”
• 5 = Headlights “on” and worklights can be switched on

Switch headlights to “low beam” or “high beam” position using switch (B).

• Pull switch toward steering wheel = Headlight flasher (flash-to-pass)
• Switch in center = low beam
• Push switch away from steering wheel = high beam

Indicator light (C) will glow when headlight switch is in “high beam” position.

NOTE: If the egress light is activated at the CommandCenter (see “Worklights” in this Section), the headlights and any worklights that are activated come on for several seconds if the light switch is turned briefly to position 1 once or several times.

Frequency of switch actuation	Egress light "on" time
Once	90 seconds
Twice	120 seconds
Three Times	150 seconds
Four Times	180 seconds
