Changing the Fuel Filters

LX1041439
LX1041439-UN-20NOV06

LX1041440
LX1041440-UN-20NOV06

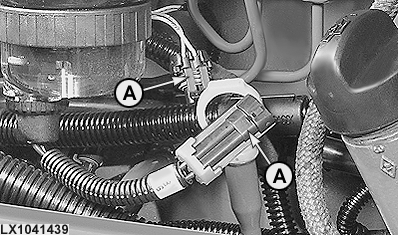

A - Cable

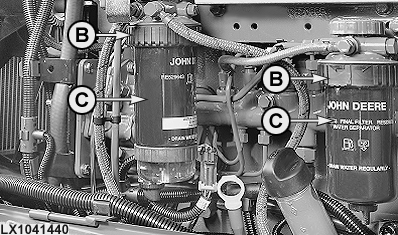

B - Retaining ring

C - Filter

Always change the two filters at the same time.

  1. Disconnect cable (A) from the water sensor.

  2. Unfasten filter retaining ring (B) and remove filter (C). Seal old filter with cover of the new one.

  3. Remove water separator and install it on new filter.

  4. Attach new filter. The marks on the filter must be aligned with those on the housing.

  5. Tighten retaining ring (B) until it clicks into place.

  6. Reconnect cable (A).

  7. Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds.

OU12401,000157C-19-20061118
