Levers for Electronically Controlled Selective Control Valves (E-SCVs)

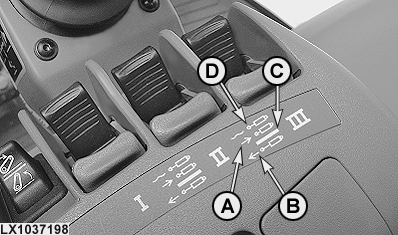

LX1037198-UN-13OCT05

A - Retract

B - Extend

C - Neutral position (between retract and extend)

D - Float position

The control lever has four settings.

The remote cylinder retracts when the lever is moved to the Retract position.
The remote cylinder extends when the lever is moved to the Extend position.
The remote cylinder is held in place when the lever is in Neutral.
When the lever is in the Float position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours. To obtain this position, move the lever as far as it will go in Retract, press it downward and then press it further to the front.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.
