Vehicle Controls

LX1041035-UN-14JUN06

LX1036605-UN-04OCT05

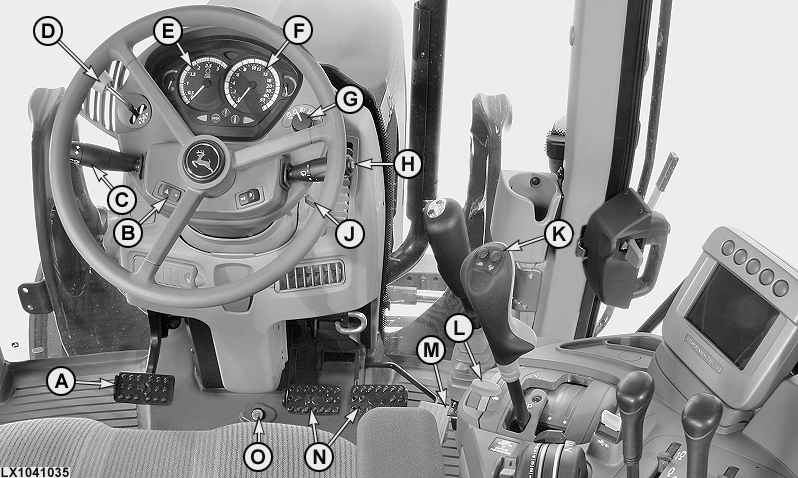

Tractors with CommandArm

A - Clutch pedal

B - Hazard warning light switch

C - Turn signal lever/horn

D - Reverser lever

E - Tachometer (engine rpm)

F - Speedometer, km/h or mph

G - Light switch

H - Wiper switch

J - Main (key) switch

K - Range shift lever with speed buttons

L - Hand throttle

M - Accelerator pedal

N - Left and right brake pedals

O - Differential lock

Different arrangement with IVT

LX1037176-UN-24APR06

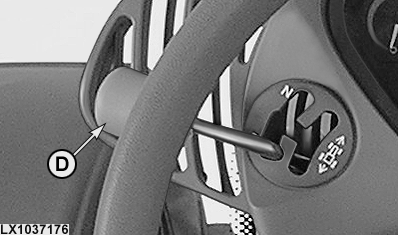

Reverser lever for IVT

LX1036193-UN-04OCT05

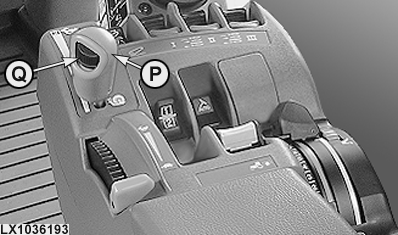

Speed control lever with IVT

D - Reverser lever

P - Speed control lever

Q - Speed wheel (for setting maximum speed)
