Instructional Seat

LX1036627
LX1036627-UN-25AUG05

CAUTION: This instructional seat must be used for training or diagnostic purposes only.

Keep all other riders off the tractor and equipment.

Always use the seat belt.

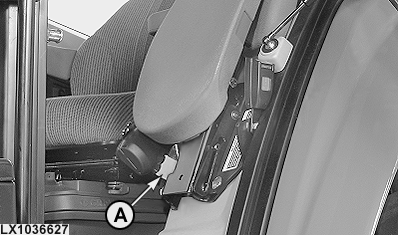

Press lock (A).

LX1036628
LX1036628-UN-25AUG05

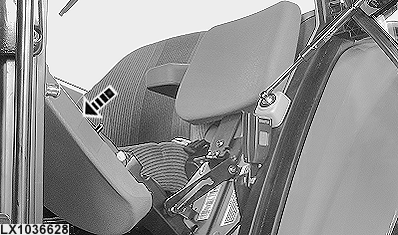

Tip instructional seat forward.

LX1036629
LX1036629-UN-25AUG05

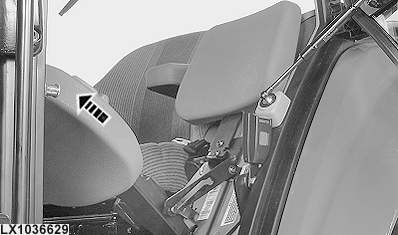

Rotate seat 90°.

LX1036630
LX1036630-UN-25AUG05

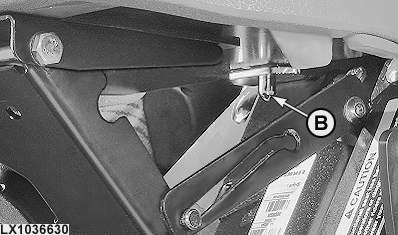

Tip seat backward. Make sure that pin (B) engages in the appropriate bore.

CAUTION: When driving, always wear the seat belt (if equipped).

OU12401,0001728-19-20070419
