Replacing Drive Belt

LX1026131-UN-21MAY01

NOTE: On tractors with front PTO, the drive belt must be replaced by your John Deere dealer.

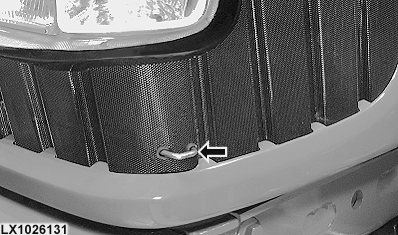

Pull the catch and lift the hood up.

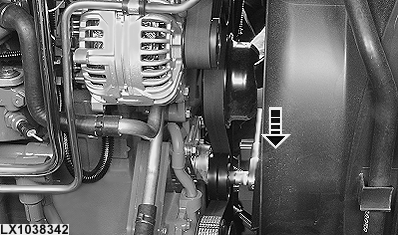

Relieve drive belt tension

LX1038342-UN-18MAY06

LX1027736-UN-28AUG01

A - Hole (cam)

B - Hole (base plate)

C - Tensioner roll

CAUTION: Disconnect ground (—) cable from battery.

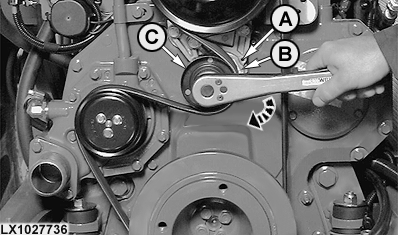

Remove cover from tensioner roll (C). Turn tensioner roll cap screw using a 15 mm (19/32 in.) wrench (see arrow). Once released, the drive belt tensioner automatically goes back to the tensioning position.

The drive belt tensioner can be kept in relieved position as follows:

Turn tensioner roll cap screw (see arrow) until bores (A) and (B) are aligned. Insert a 5 mm (0.2 in.) dia. pin into the two bores that are in alignment.

For tensioning, turn tensioner roll slightly to release metal pin and pull it from the bores. The drive belt tensioner returns to its tensioning position automatically.

Replace the drive belt

LX1034175-UN-14JUN04

LX1034176-UN-14JUN04

A - Corrugated-head screws

B - Drive belt

C - Fan

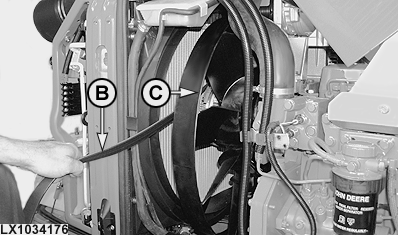

Take the six screws (A) out of the fan.

Take drive belt (B) off over fan (C) and put on a new drive belt (see below for routing of belt).

IMPORTANT: When installing, always use new corrugated-head screws.

Tighten corrugated-head screws to the following specification.

Item	Measurement	Specification
Attachment to fan	Torque	22 – 28 Nm 16 – 21 lb-ft
