Rear Wheel Treads for 8-Position Wheels with Single Tires — Hi-Crop Tractor — Flanged Axle
RW21362A-UN-06SEP99
NOTE: Tread settings are measured at the bottom tire centerline.

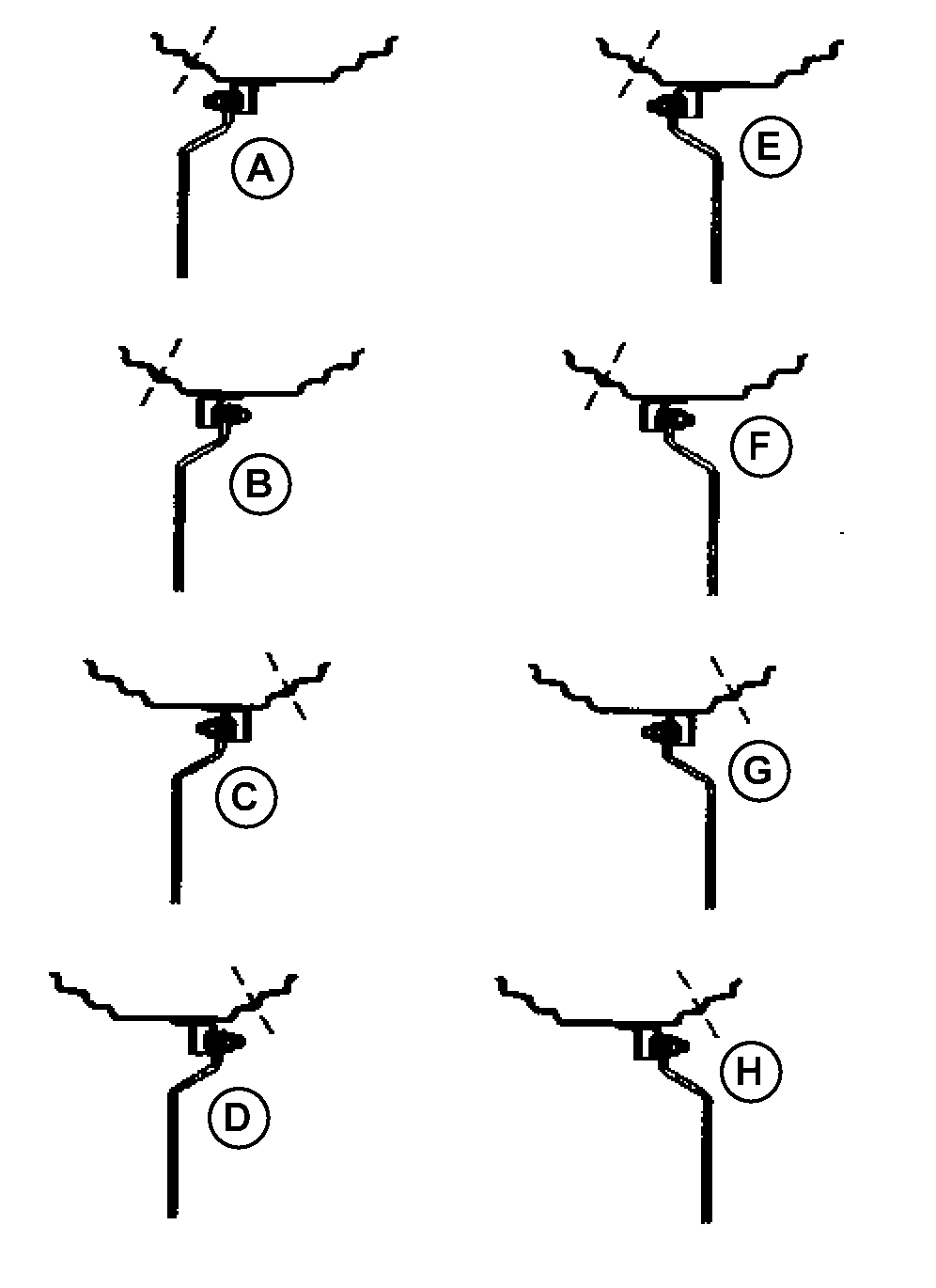

Use diagram as a guide to set rim and disk, to obtain desired tread setting.
|
18.4 Tire |
||
|---|---|---|
|
Valve Stem Out |
Valve Stem In |
|
|
A— |
— |
— |
|
B— |
1626 mm (64 in)1 |
— |
|
C— |
— |
1727 mm (68 in.) |
|
D— |
— |
1829 mm (72 in.) |
|
E— |
1930 mm (76 in.) |
— |
|
F— |
2032 mm (80 in.) |
— |
|
G— |
— |
2134 mm (84 in.) |
|
H— |
— |
2235 mm (88 in.) |
|
1 Parts
are available from your John Deere dealer to obtain a tread setting
of 1676 mm (66 in.).
|
OU12401,0001750-19-20070502 |
