Using the Hydraulic Center Link

LX1044980-UN-17MAR08

Adjust upper limit gradually

With the hydraulic center link, before starting any journey or operating in the field the operator must be certain that the three-point hitch has sufficient clearance for all possible movements. The center link must not come into contact with other parts of the tractor at any point within its vertical and horizontal ranges.

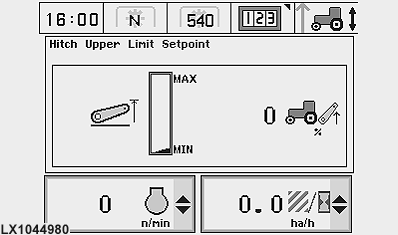

With mounted implement, retract the center link fully. On the CommandCenter screen, set the mark to “MIN”. Use the hitch control to raise the implement fully. Carefully move the mark in the CommandCenter towards "MAX" until the implement reaches its highest possible position.

IMPORTANT: To avoid damaging the center link and its bracket on the tractor, the hydraulic center link may be operated only in the top and center holes of the center link bracket.
