After the First 4 and 8 Operating Hours

Tighten rear wheel retaining bolts

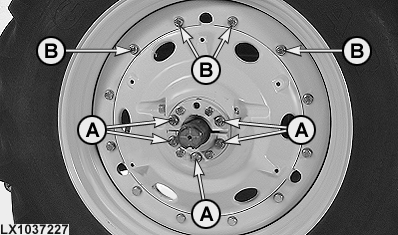

LX1037227-UN-02NOV05

A - 600 Nm (445 lb.-ft.)

B - 600 Nm (445 lb.-ft.)

Tighten bolts/nuts of front wheels

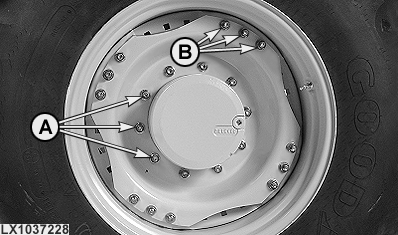

LX1037228-UN-02NOV05

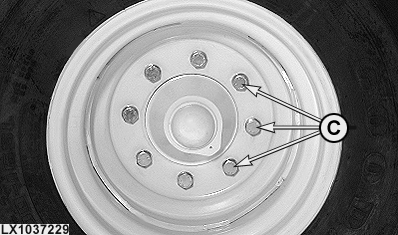

LX1037229-UN-02NOV05

A - 480 Nm (355 lb.-ft.)

B - 310 Nm (230 lb.-ft.)

C - 310 Nm (230 lb.-ft.)

Adjustable front axle

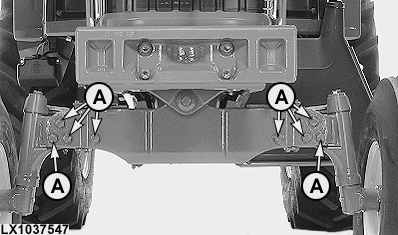

LX1037547-UN-04NOV05

A - Mounting Screws

Tighten mounting screws (A) to 600 Nm (445 lb.-ft.).
