Lift Links (7330-7530 Tractors)

LX1037174-UN-29SEP05

LX1049744-UN-03MAY10

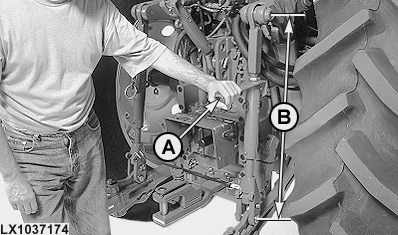

A - Adjusting Handle

B - Length of Links

E - Stops (2 on Each Lift Link)

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

To level implement from side-to-side, adjust one link. Use handle (A) to adjust the link.

Length of links (B) must be kept within the limits stated.

• Minimum length 875 mm (34.4 in.)
• Maximum length 1035 mm (40.7 in.)

NOTE: A short lift link provides a short lifting height and maximum lifting force.

A long lift link provides a long lifting height and less lifting force.

IMPORTANT: When engaging the lift links in the lift arms, make sure that stops (E) are always at the rear as shown.
