Steering Stop Positions — 7130, 7230, 7330, 7430 and 7530 Tractors with Front-Wheel Drive

RXA0053751-UN-21MAY01

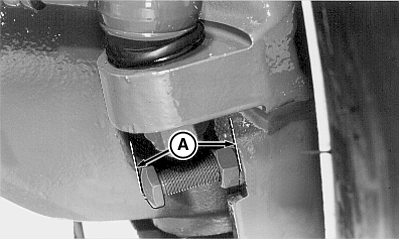

Steering stop dimension (A) is expressed in millimeters. Tractor turning radius increases as steering stop dimension increases. Steering stop dimensions in parentheses are for tractors without fenders.

NOTE: Tractors with loaders may have different steering stop positions. Refer to the loader Operator's Manual.

Steering stop positions
Tread	1510 mm (60 in.*)	1611 mm (64 in.*)	1713 mm (68 in.*)	1814 mm (72 in.*)	1916 mm (76 in.*)	2018 mm (80 in.*)	2119 mm (84 in.*)	2235 mm (88 in.***)
Tire Size
	mm	mm	mm	mm	mm	mm	mm	mm
380/85R28 14.9R28	105 (95)	80 (75)	70 (50)	65 (35)	40 (35)	35 (35)	35 (35)	35 (35)
380/85R34 14.9R30	(100)	85 (80)	70 (55)	65 (40)	40 (35)	35 (35)	35(35)	35 (35)
16.9-26 16.9R26	**	95 (85)	75 (60)	65 (35)	50 (35)	35 (35) ***	**	**
420/85R28 16.9R28	(105)	95 (90)	75 (70)	65 (60)	50 (35)	35 (35)	35 (35)	35 (35)
290/95R34 320/85R34	90 (85)	80 (70)	60 (45)	50 (35)	50 (35)	35 (35)	35 (35)	35 (35)
420/70R28	(100)	95 (85)	75 (65)	65 (55)	50 (35)	35 (35)	35 (35)	35 (35)
480/70R28	**	105 (95)	85 (75)	65 (55)	55 (40)	35 (35)	35 (35)	35 (35)
540/65R28	NA	130 (120)	113 (103)	95 (85)	90 (85)	75 (65)	60 (45)	NA
* Spacers required for exact settings. See your John Deere dealer.
** Position not used.
*** Spacers required for this setting. See your John Deere dealer.
