Adjustment of Swinging Drawbar

LX000460-UN-09AUG94

The swinging drawbar can be adjusted to four different positions:

250 mm (9.8 in.), 350 mm (13.8 in.), 400 mm (15.7 in.) and 550 mm (21.7 in.).

NOTE: 550 mm (21.7 in.) is NOT an option on 7330 to 7530 tractors.

These lengths determine the distance from the end of the PTO shaft to the attachment point of the swinging drawbar.

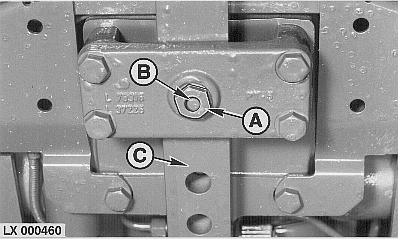

1. Remove hex. stopper (A).
2. Remove locking pin (B).
3. Shift drawbar (C) to desired position and reinstall locking pin.
4. Tighten hex. stopper (A) to 250 Nm (185 lb-ft).
