Change Oil in Front-Wheel Drive Final Drives

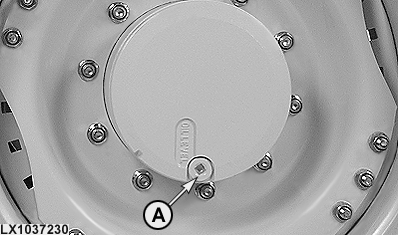

LX1037230-UN-02NOV05

A - Drain Screw

CAUTION: If the oil is hot, it may be under pressure. Remove drain screw slowly.

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

2. Turn the wheel through 90° so that the line marked OIL LEVEL is horizontal (see Service / Every 250 Hours), and fill with fresh oil at drain screw bore. Oil must be level with drain screw bore.

3. Re-install drain screw and tighten to 90 Nm (66 lb.-ft.).

Recommended oil	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	ca. 1.7 L (0.4 US.gal.) To fill, follow the procedure described above.
