Transmission Serial Number

LX000554-UN-09AUG94

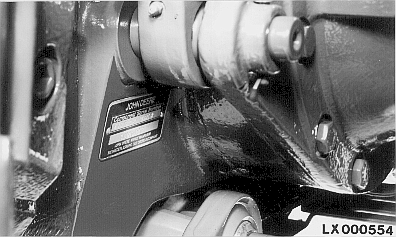

On 7130 and 7230 tractors, the transmission serial number plate is located on the right-hand side of the differential housing. It provides details of the transmission ratio of the front-wheel drive axle output (e.g. 1.712) and the transmission ratio of the differential gear pair (e.g. 54/13). This information will be required if the type of tires is to be changed.

On 7330 to 7530 tractors, this information is provided on the product information plate, which is located on the l.h. side of the radiator.

*

*
