500 Hour Service

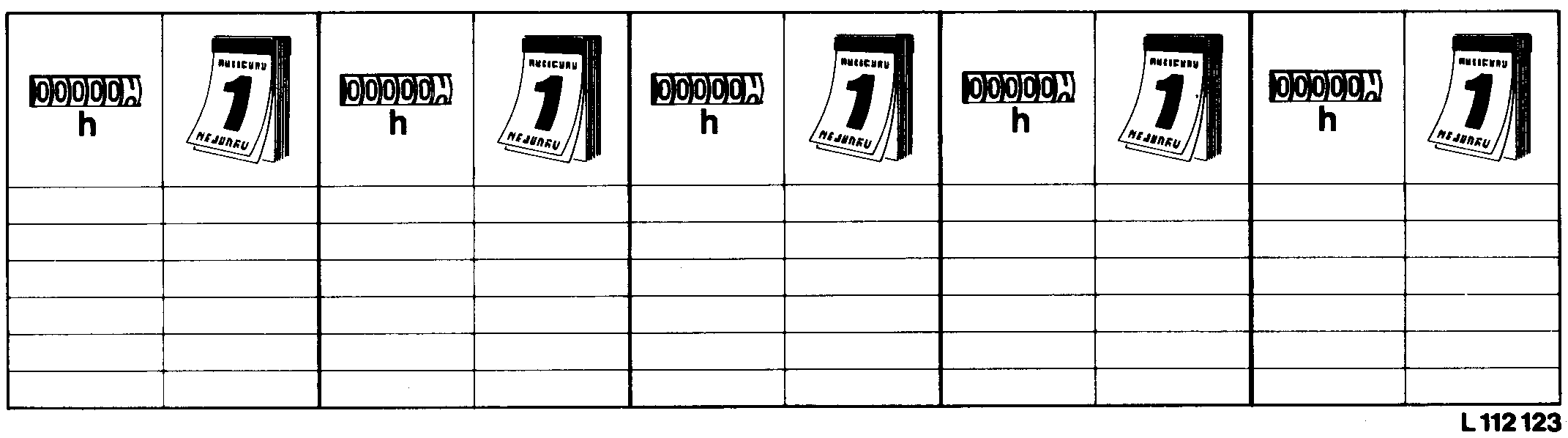

L112123-UN-05SEP94

Drain and refill engine crankcase. Replace engine crankcase filter element. Replace fuel filter. Lubricate rear axle bearings. Lubricate the draft link bearings (7330 to 7530 tractors). Check air intake hoses. Check engine ground connection. Check cab ground connection. Check engine drive belt. Drain residue from fuel tank. Check oil level of transmission/hydraulic system. Clean battery and check electrolyte level. Lubricate the front axle. Lubricate front-wheel drive axle/drive shafts and check oil level. Lubricate the front PTO drive shaft. Lubricate three-point hitch. Lubricate pivoting fenders. Check neutral start circuit. Tighten wheel retaining bolts. Tighten screws on front loader bracket. Check components of swinging drawbar. Check brakes.
