Maximum Permissible Oil Withdrawal

LX1043820-UN-11JUL07

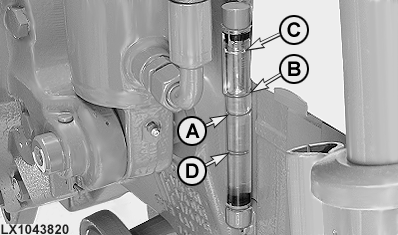

Marks on sight-glass, 7130 and 7230 tractors

LX1044994-UN-12JUN08

Marks on sight-glass, 7330-7530 tractors

A - Minimum mark

B - Maximum mark

C - Mark, 10 liters (2.6 U.S. gal.) above max.

D - Mark, 10 liters (2.6 U.S. gal.) below min.

To operate large hydraulic cylinders such as those used on tipping trailers, 10 liters (2.6 U.S. gal.) of oil may be drawn from the transmission case through the connecting lines.

This figure applies when the oil in the transmission case is at the minimum mark on the sight-glass. If the oil is at its maximum level, an additional 5 liters (1.3 U.S. gal.) may be withdrawn from 7130 and 7230 tractors and an additional 10 liters (2.6 U.S. gal.) from 7330 to 7530 tractors.

Never perform heavy jobs such as towing, operating a PTO or driving fast when withdrawal results in the oil level dropping below the minimum mark.

If required, a further 10 liters (2.6 U.S. gal.) may be added to the transmission case of 7130 and 7230 tractors and a further 15 liters (4.0 U.S. gal.) to that of 7330 to 7530 tractors; this increases the amount that may be withdrawn accordingly.

During oil withdrawal, the tractor should not be inclined in any direction by more than 18°. If the tractor is inclined by more than 18°, only a correspondingly lower quantity of oil may be withdrawn.

For refilling, use only John Deere Hy-Gard™ Transmission and Hydraulic Oil or its equivalent.
