Front Loader Installation - Front Loader Brackets

CC1028532-UN-01SEP06

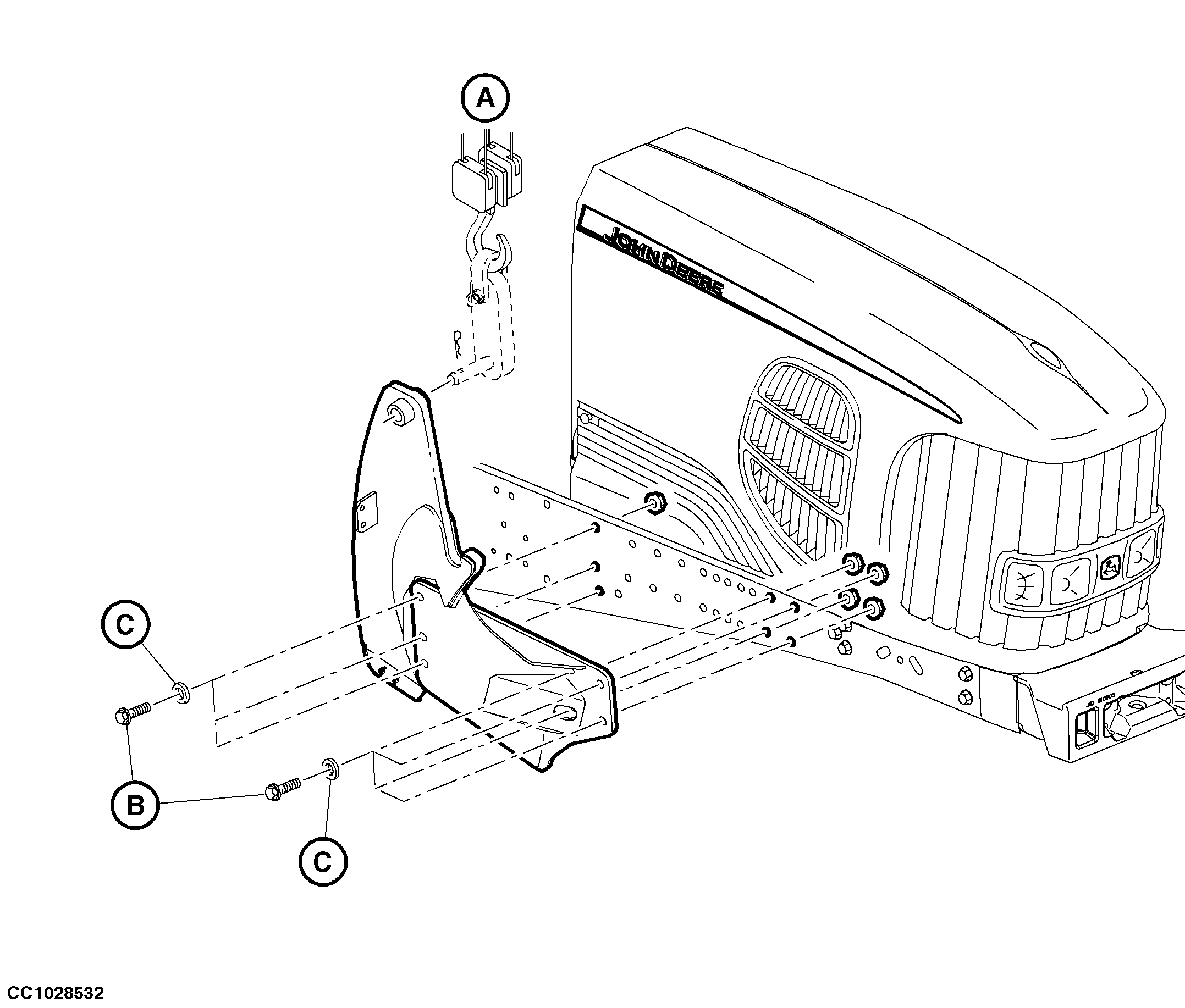

Hardware for John Deere front loader brackets
Item	Description	Width across flats	Torque	Standard	Thread	Length	Identification / Grade
A	Weight of front loader bracket, 100 kg (220 lb)	-	-	-	-	-	-
B	Cap screws (7 used)	30 mm	620 N•m (460 lb.-ft.)	ISO4017	M20 x 2.5	60 mm (2.36 in.)	10.9
C	Washers (7 used)	-	-	-	-	21.4 x 22 x 5 mm	-
	Nuts (5 used)	30 mm	-	ISO4161	M20 x 2.5	-	10

Using a suitable hoist, position the front loader brackets on the main frame of the tractor and tighten the screws to the specified torque. Check the torque regularly; see Section 85, Lubrication and Periodic Service.

A front loader checked and approved by John Deere is available for purchase. When installing John Deere front-loader brackets, use appropriate hardware only, as shown in the illustration above. Comply also with Operator's Manual and Installation Instructions of the front loader.
