Setting the Clock—Early Model Tractors

RXA0065276-UN-05FEB03

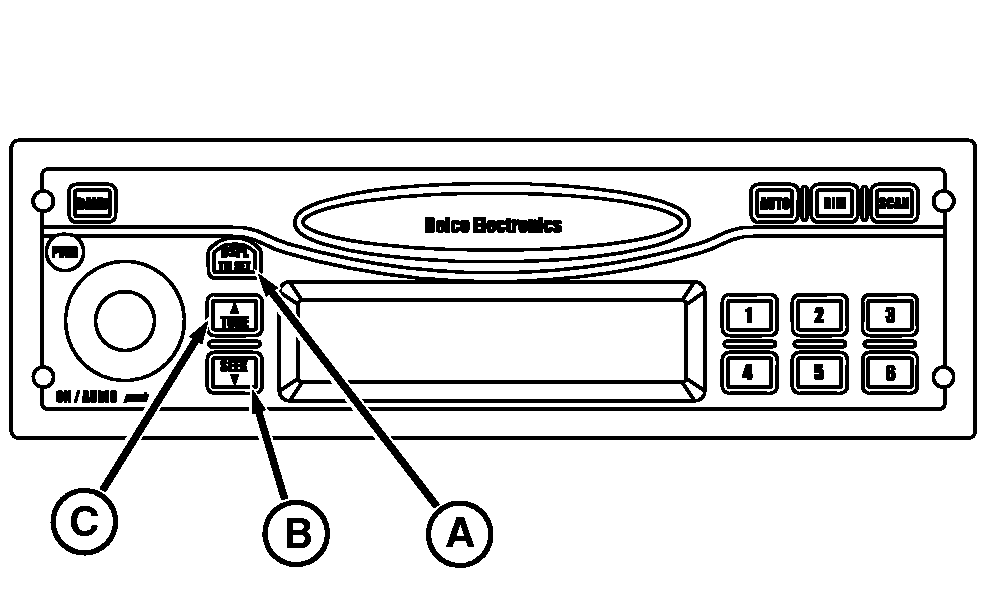

Setting the Clock

A - DSPL/TM SET

B - SEEK

C - TUNE

1. Switch ignition to ON position.
2. Press and hold DSPL/TM SET (A) button until the ”hours” digits flash.
3. Press SEEK (B) or TUNE (C) to set the correct hour.
4. Press and hold DSPL/TM SET until the ”minutes” digits flash.
5. Press SEEK or TUNE to set correct minute. The seconds are reset to zero when minute setting is changed.
