Tightening Rear Wheel Bolts

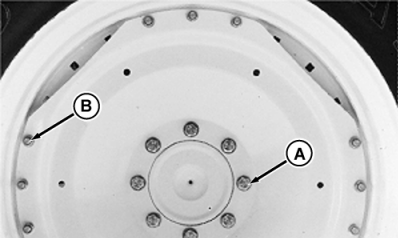

RW55090A-UN-06SEP99

Flanged Axle

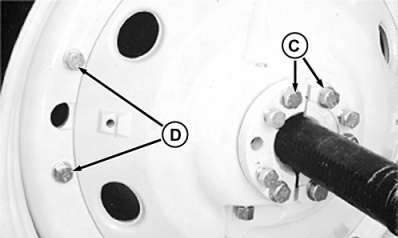

RW19892A-UN-11AUG99

Cast Wheel

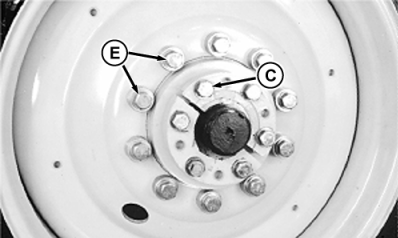

RW21295A-UN-11AUG99

Steel Wheel

A - Disk-to-Axle Flange Bolt

B - Rim-to-Disk Steel Wheel Bolt

C - Sleeve Retaining Bolts

D - Rim-to-Cast Wheel Bolts

E - Steel Wheel-to-Hub Bolts

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

IMPORTANT: Do not use clamp-on dual wheels with steel wheels, on flanged axle.

Tightening Sleeve Retaining Bolts

1. Install sleeve retaining bolts (C) and tighten to 204 Nm (150 lb-ft).
2. Retighten to 410 Nm (300 lb-ft).
3. Drive tractor 100 meters (110 yd), then tighten bolts (C) to 600 Nm (445 lb-ft).
4. Retighten bolts after operating 3 HOURS and 10 HOURS.

IMPORTANT: When sleeve retaining bolts (C) have been loosened, both sleeve halves must be tightened evenly to prevent hub cracking or bolt loosening.

Tightening Cast Wheel-to-Rim Bolts

Rear wheel rims 965 mm (38 in.) and larger have one bolt hole smaller than the others and one slotted hole 180 degrees apart.

1. Install bolt in tight-fit hole and hand tighten.
2. Install bolt in slot-fit hole and hand tighten.
3. Install remaining bolts hand tight, then tighten all cast wheel-to-rim bolts to 600 Nm (445 lb-ft).
4. Retighten bolts after operating 100 meters, 3 HOURS and 10 HOURS.

A—Disk-to-Axle Flange Bolts..............500 Nm (370 lb-ft)

B—Rim-to-Disk Bolts (Multiposition Steel Wheels)

... 864 mm (34 in.) or 965 mm (38 in). wheels..............310 Nm (230 lb-ft)

... 1168 mm (46 in.) or 1270 mm (50 in.) wheels..............600 Nm (445 lb-ft)

C—Sleeve Retaining Bolts

... First Tightening..............204 Nm (150 lb-ft)

... Second Tightening..............410 Nm (300 lb-ft)

... Final Tightening..............600 Nm (445 lb-ft)

D—Rim-to-Cast Wheel Bolts..............600 Nm (445 lb-ft)

E—Steel Wheel-to-Hub Bolts..............600 Nm (445 lb-ft)
