MFWD Toe-In Adjustment — Hi-Crop Tractor

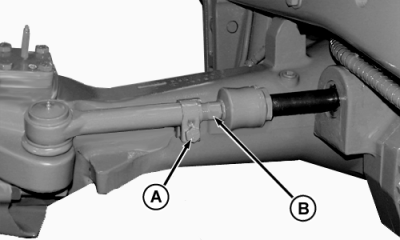

RW26951-UN-15MAY00

A - Clamp

B - Steering Cylinder Rod

1. Loosen clamp (A) on tie rod.

2. Rotate steering cylinder rod (B) as necessary to obtain toe-in not to exceed 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

3. Tighten each nut to 75 Nm (55 lb-ft).

   NOTE: Bolt threads should point to front of tractor.
