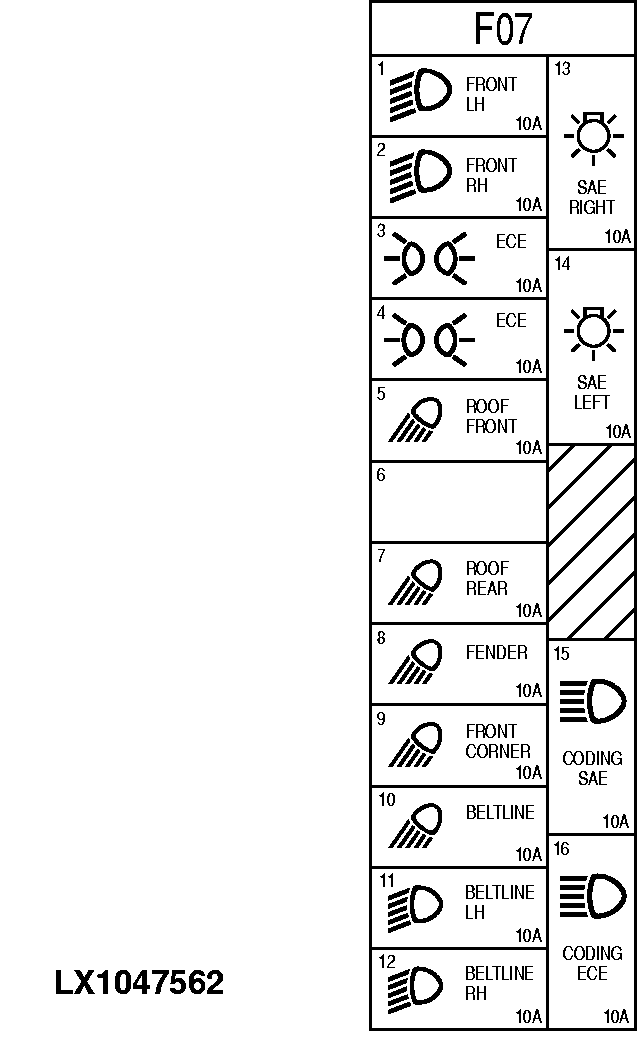

Fuses F07 (with Cab)
LX1047562-UN-30JAN09
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F07/01 |
10 A |
Left low beam (front grille headlights) |
|
F07/02 |
10 A |
Right low beam (front grille headlights) |
|
F07/03 |
10 A |
Right tail light (ECE), left clearance light (ECE) |
|
F07/04 |
10 A |
Left tail light (ECE), right clearance light (ECE), license plate light (ECE) |
|
F07/05 |
10 A |
Worklights on front of roof |
|
F07/06 |
- |
Not used |
|
F07/07 |
10 A |
Worklights on rear of roof |
|
F07/08 |
10 A |
Rear-facing worklights on rear fenders |
|
F07/09 |
10 A |
Front corner worklights |
|
F07/10 |
10 A |
Worklights on cab frame |
|
F07/11 |
10 A |
Headlights on cab frame (left low beam) |
|
F05/12 |
10 A |
Headlights on cab frame (right low beam) |
|
F07/13 |
10 A |
Right tail light (SAE) |
|
F07/14 |
10 A |
Left tail light (SAE) |
|
F07/15 |
10 A |
Light selection (SAE) |
|
F07/16 |
10 A |
Light selection (ECE) |
|
OU12401,0001B15-19-20090130 |
