Hitch Dampening

LX1024745-UN-20NOV00

The tractor is equipped with a hitch dampening function that prevents the tractor from "pitching" when it is travelling with a raised implement.

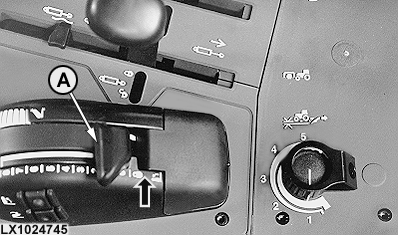

To activate the dampening function, first move hitch control lever (A) (with the engine running) to the position that corresponds to the position of the draft links. Then pull it as far as it will go to the rear (beyond “0”) to the transport position (see arrow). The rate-of-drop control must NOT be in the left-hand end position.

To switch off the dampening function, push the hitch control lever forward from the transport position to a position beyond “0” (in the "drop" direction).

NOTE: Using the remote control and switching off the engine both have the effect of switching off the hitch dampening function.
