Lubricating Front Axle and Wheels (Tractors without Front-Wheel Drive)

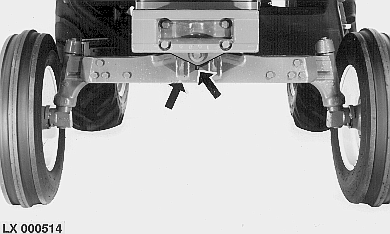

LX000514-UN-10AUG94

LX000515-UN-12AUG94

LX000516-UN-12AUG94

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate front axle and front wheel grease fittings (these differ depending on tractor equipment) using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.
