Comfort Seat

LX1042967-UN-30MAY07

LX1042968-UN-30MAY07

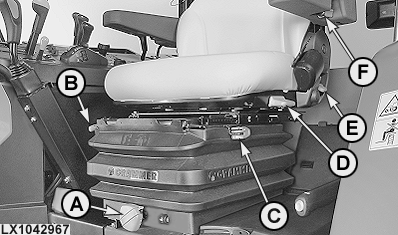

A - Crank for adjusting operator's weight

B - Fore-and-aft adjustment

C - Lever for fore/aft spring¹

D - Lever for swivel¹

E - Backrest tilt adjustment

F - Armrest tilt adjustment

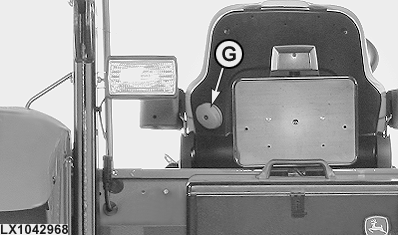

G - Lumbar support adjustment

To adjust the seat upward, raise it until it clicks into place (maximum of 3 detent positions). To adjust downward, raise the seat to the stop position and then lower it.

Adjust fore/aft spring:

• Lever (C) to the front - no fore/aft suspension
• Lever (C) to the rear - fore/aft suspension

IMPORTANT: Shut off engine before swivelling the seat. Accidental contact with the controls could cause the tractor or implement to operate.

If the seat is equipped with a swivel (optional equipment), this is operated using lever (D) as follows:

Lifting the lever up allows the seat to turn 15° to the left and right. The seat can be locked at 7.5° intervals.

To lower the armrest by 30°, press the armrest tilt adjuster (F) into the armrest.
