Engage the Front-Wheel Drive

LX1042974-UN-06JUL07

LX002780-UN-16AUG94

A - Front-wheel drive disengaged

B - Front wheel drive engaged

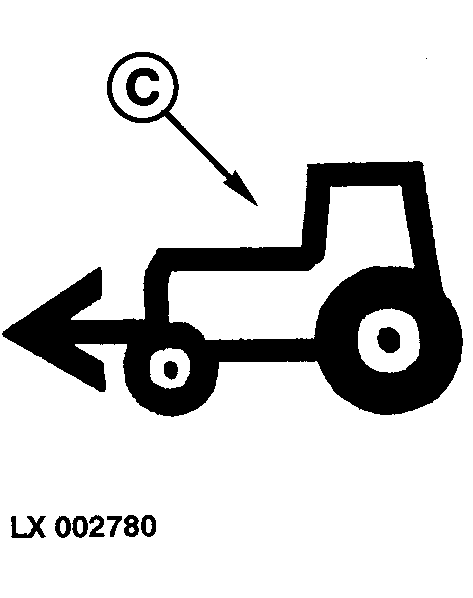

C - Indicator light comes on when front-wheel drive is engaged

Front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front-wheel drive before driving at high speed on public roads.

NOTE: When braking with both brake pedals, front-wheel drive engages automatically regardless of the position selected at the front-wheel drive switch. The front-wheel drive indicator light comes on.
