Lubricate Front Axle and U.J. Shafts (Tractors with Front-Wheel Drive)

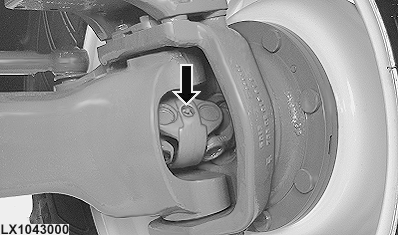

LX1043000-UN-11JUL07

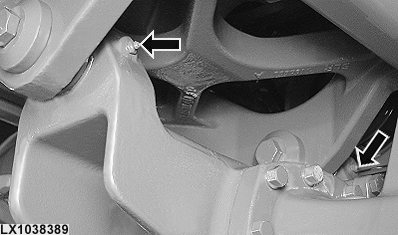

LX1038389-UN-08JUN06

LX1038390-UN-08JUN06

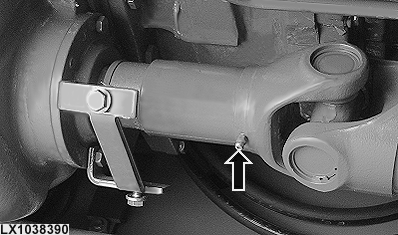

Drive shaft (rear)

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate the grease fittings on final drives (two on each final drive), axle center section and rear drive shaft using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.
