Replace Transmission/Hydraulic Oil Filter

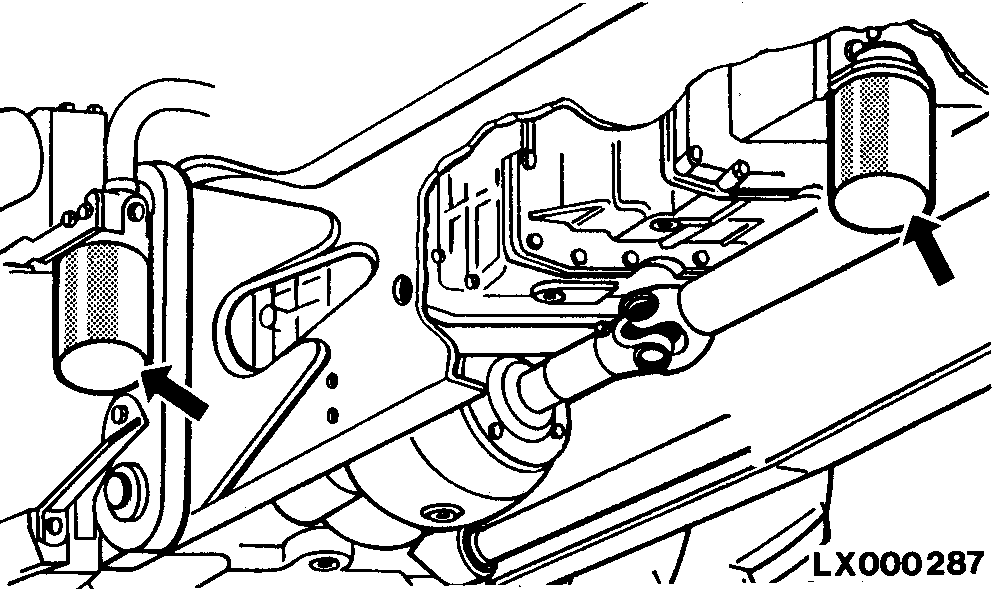

LX000287-UN-15AUG94

NOTE: Replace transmission/hydraulic system filter elements after the first 100 hours of operation. Then replace after the first 750 hours of operation, and regularly every 750 hours thereafter.

1. Unscrew filter elements.

2. Coat sealing rings of new filter elements with grease and screw in filter elements.

Use original John Deere filter elements only!

IMPORTANT: Always replace both filters at the same time. Never change one only.
