Fuses F01PLB (Engine Compartment)

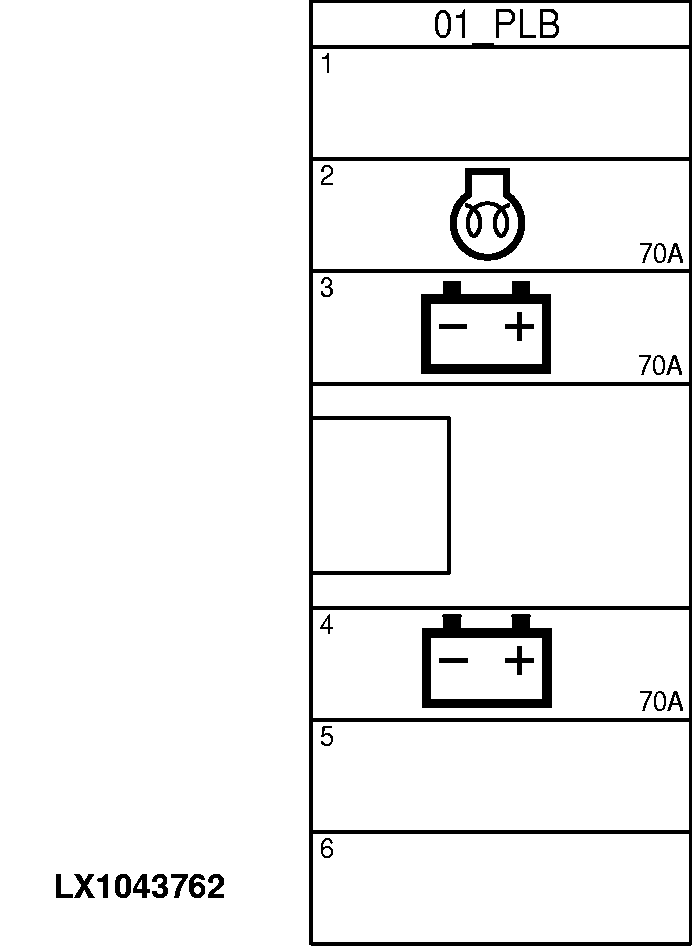

LX1043762-UN-19JUL07

Number	Capacity (amps)	Consumer
F01PLB/01	-	Not used
F01PLB/02	70 A	Heating element of electrical starting aid
F01PLB/03	70 A	Main fuse
F01PLB/04	70 A	Main fuse
F01PLB/05	-	Not used
F01PLB/06	-	Not used
