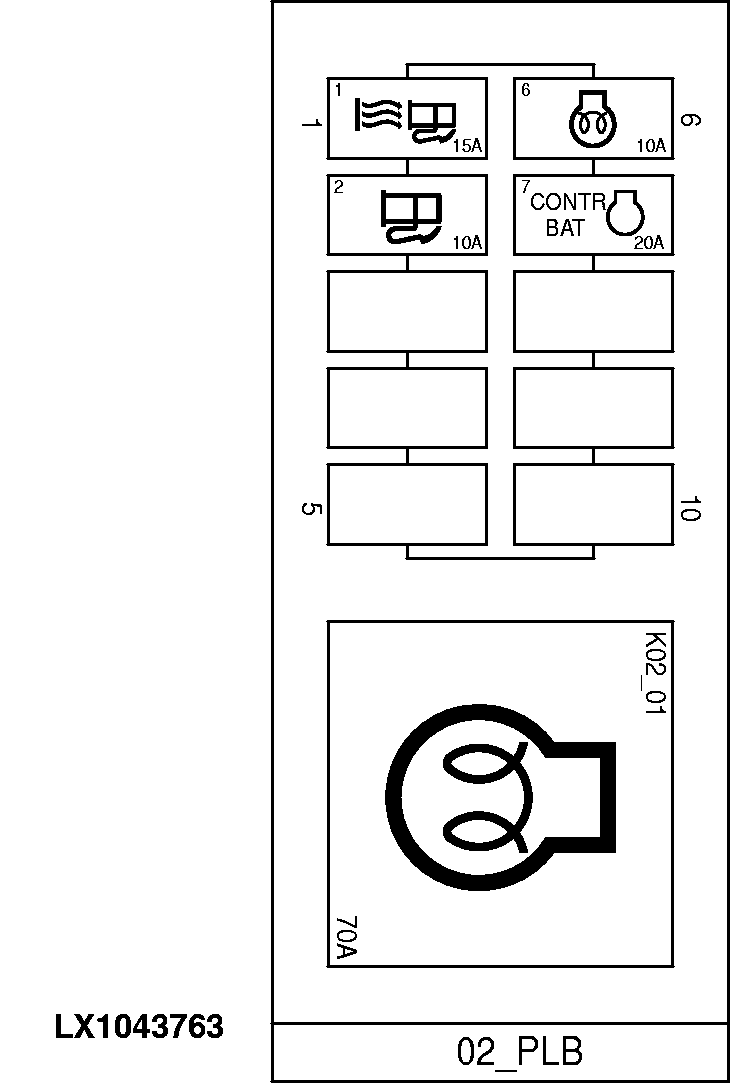

Fuses F02PLB (Engine Compartment)
LX1043763-UN-19JUL07
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02PLB/01 |
15 A |
Heating element of fuel preheater |
|
F02PLB/02 |
10 A |
Fuel Pump |
|
F02PLB/03 |
- |
Not used |
|
F02PLB/04 |
- |
Not used |
|
F02PLB/05 |
- |
Not used |
|
F02PLB/06 |
10 A |
Monitoring of electrical starting aid |
|
F02PLB/07 |
20 A |
ECU control unit |
|
F02PLB/08 |
- |
Not used |
|
F02PLB/09 |
- |
Not used |
|
F02PLB/10 |
- |
Not used |
|
OU12401,00017B3-19-20070721 |
