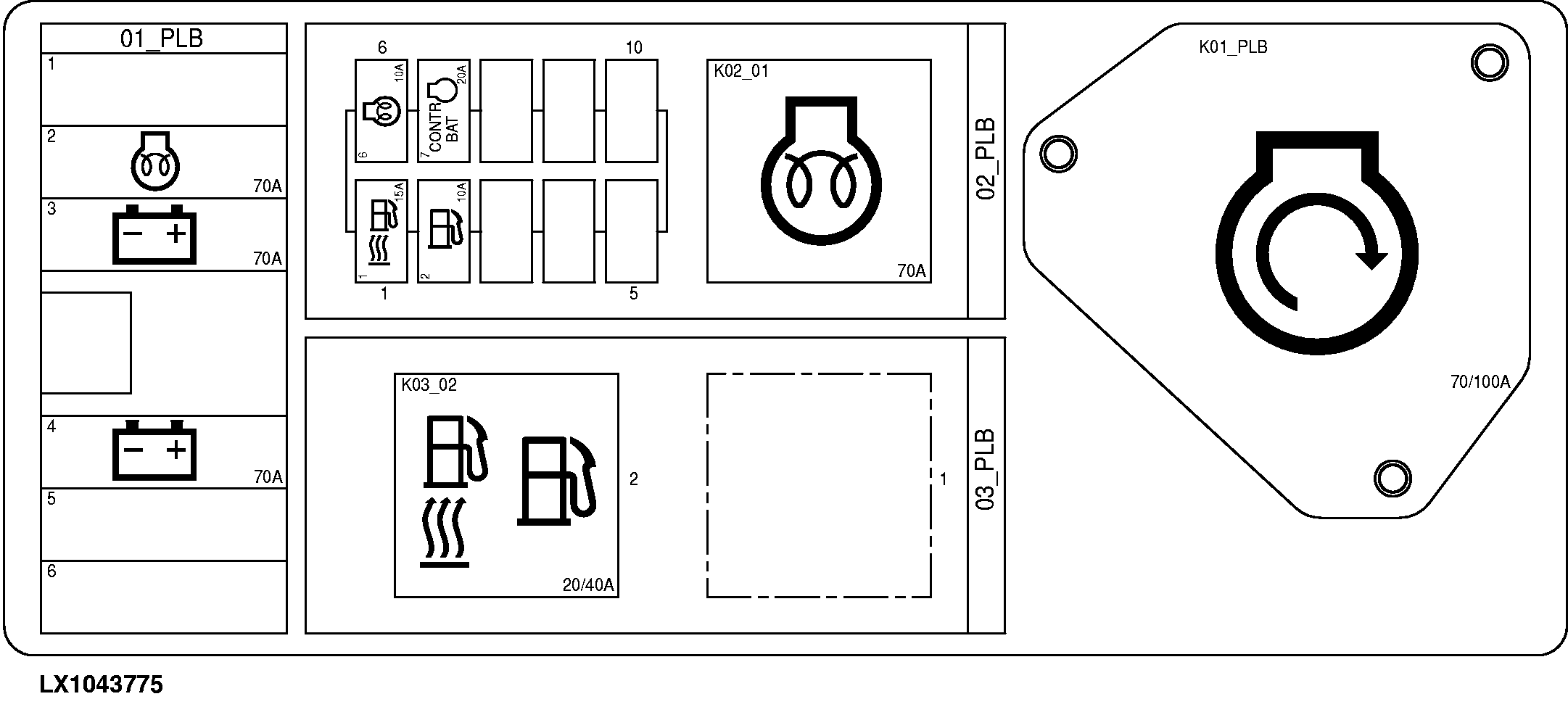

Relays K01PLB to K03PLB (Engine Compartment)

LX1043775-UN-19JUL07

Number	Capacity (amps)	Designation
K01PLB	70/100 amps	Starting motor relay
K02PLB/01	70 A	Relay for electrical starting aid
K03PLB/01	-	Not used
K03PLB/02	20/40 amps	Relay for fuel pump and fuel preheater
