Fuses and Relays (Tractors without Cab)

LX1043770-UN-19JUL07

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

The fuse and relay box is located on the left behind the operator's seat in the rear wall of the open operator's station.

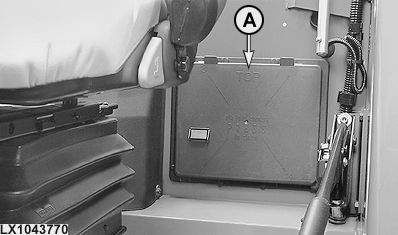

Take cover (A) off the fuse and relay box.
