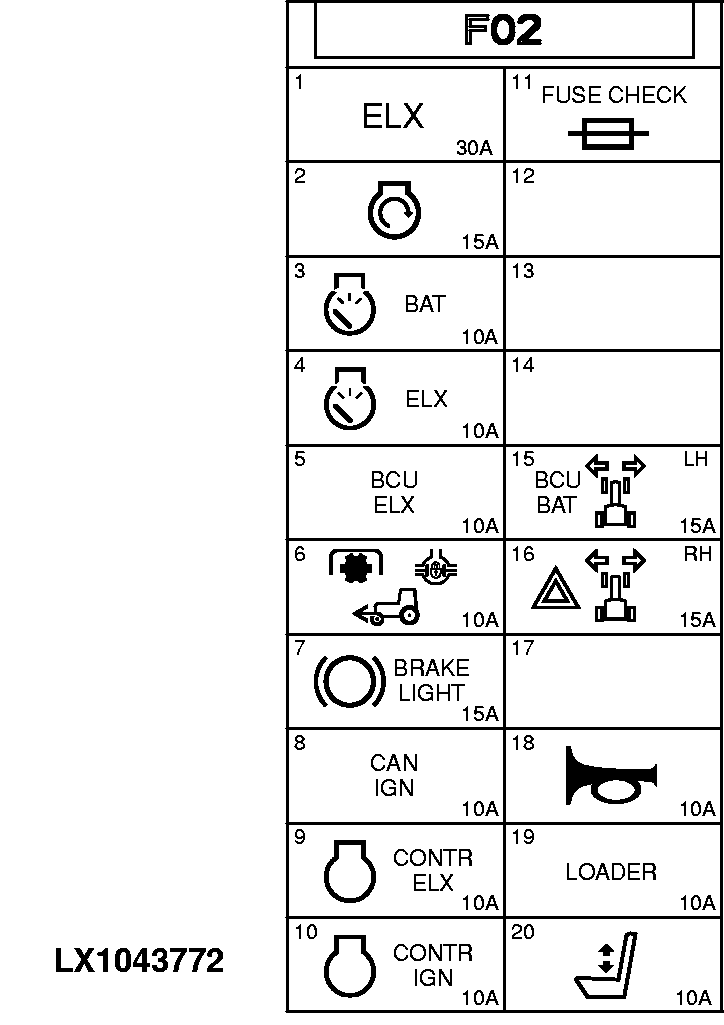

Fuses F02 (without Cab)

LX1043772-UN-19JUL07

Number	Capacity (amps)	Consumer
F02/01	30 A	Power supply for electronics
F02/02	15 A	Main (key) switch
F02/03	10 A	Instrument unit
F02/04	10 A	Instrument unit
F02/05	10 A	BCU control unit
F02/06	10 A	BCU control unit (rear PTO, front PTO, front-wheel drive, differential lock)
F02/07	15 A	Brake switch, brake light
F02/08	10 A	CAN BUS
F02/09	10 A	ECU control unit
F02/10	10 A	ECU control unit
F02/11	-	Fuse tester
F02/12	-	Not used
F02/13	-	Not used
F02/14	-	Not used
F02/15	15 A	Left turn signal, BCU control unit
F02/16	15 A	Right turn signal, hazard warning lights
F02/17	-	Not used
F02/18	10 A	Horn
F02/19	10 A	Plug for front loader, back-up alarm
F02/20	10 A	Operator's seat
