Fuses F03 (without Cab)

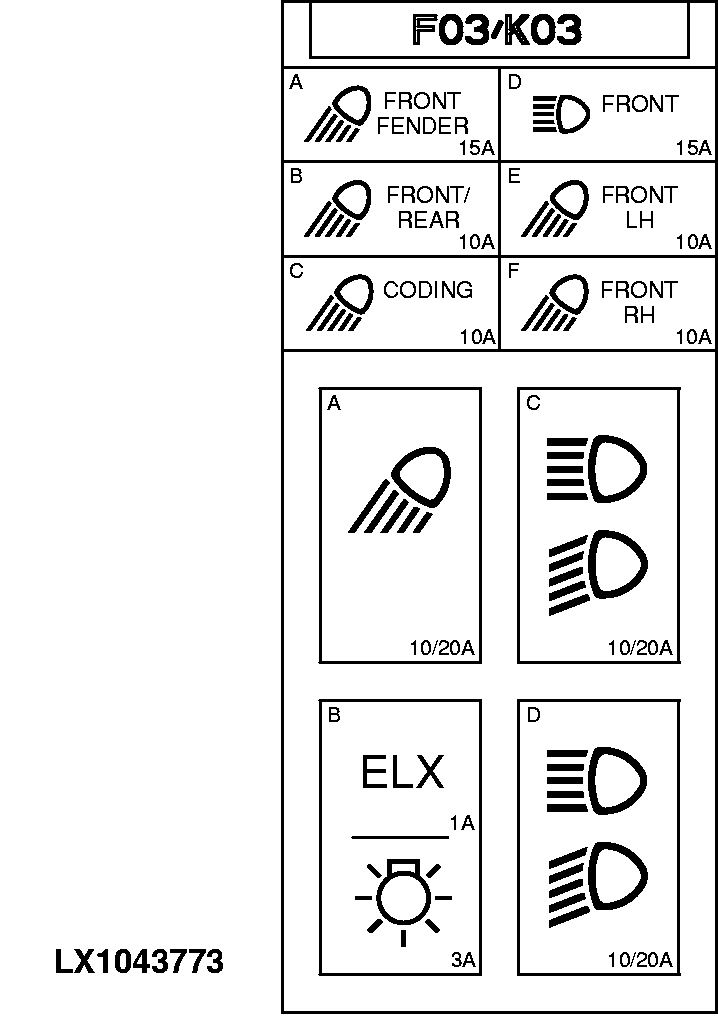

LX1043773-UN-24AUG07
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F03/A |
15 A |
Front worklights, front corner worklights |
|
F03/B |
10 A |
Left rear worklight, relay for worklights |
|
F03/C |
10 A |
Right rear worklight |
|
F03/D |
15 A |
High-beam headlights |
|
F03/E |
10 A |
Left low-beam headlight |
|
F03/F |
10 A |
Right low-beam headlight |
|
OU12401,00017B8-19-20070721 |
