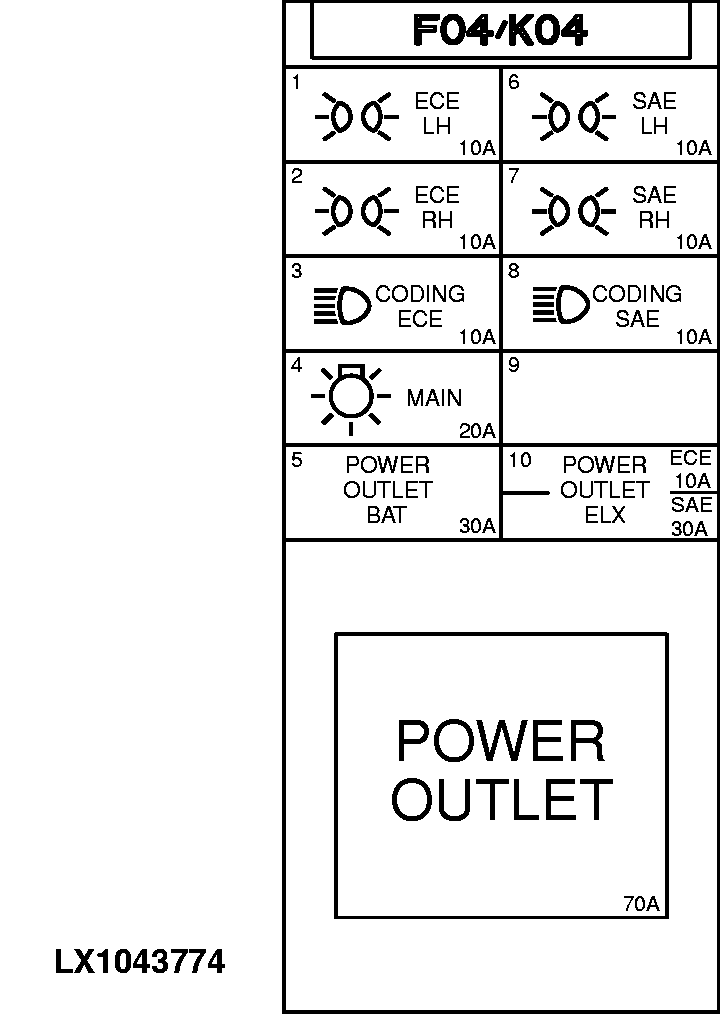

Fuses F04 (without Cab)

LX1043774-UN-19JUL07

Number	Capacity (amps)	Consumer
F04/01	10 A	Left tail light (ECE), right clearance light (ECE), license plate light (ECE)
F04/02	10 A	Right tail light (ECE), left clearance light (ECE)
F04/03	10 A	Light selection (ECE)
F04/04	20 A	Light Switch
F04/05	30 A	3-terminal socket, power outlet strip, 7-terminal socket (SAE)
	30 A	3-terminal socket, socket strip (ECE)
F04/06	10 A	Left tail light (SAE)
F04/07	10 A	Right tail light (SAE)
F04/08	10 A	Light selection (SAE)
F04/09	-	Not used
F04/10	30 A	3-terminal socket, power outlet strip, 7-terminal socket (SAE)
	10 A	3-terminal socket, socket strip (ECE)
