Fuses and Relays (Tractors with Cab)

LX1026549-UN-30JUL01

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

The fuse and relay box is located behind the operator's seat just below the rear window.

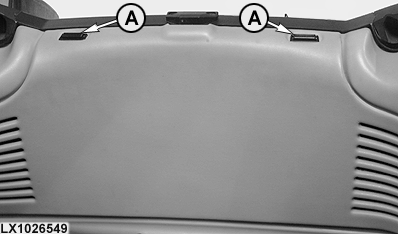

Press down latches (A) and lift off the trim panel.
