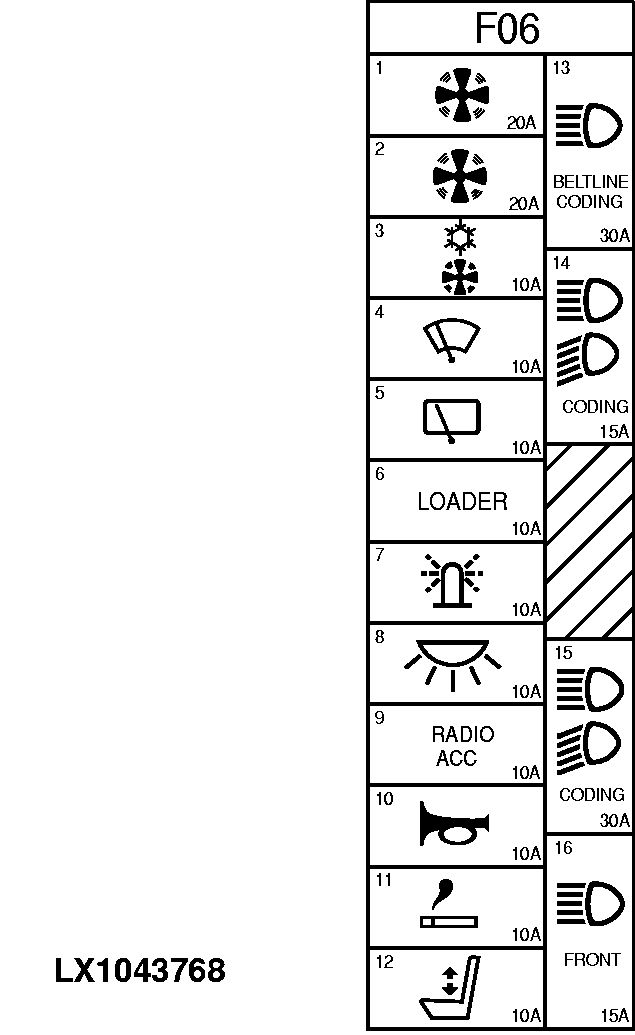

Fuses F06 (with Cab)

LX1043768-UN-24JUL07

Number	Capacity (amps)	Consumer
F06/01	20 A	Fan motor
F06/02	20 A	Fan motor
F06/03	10 A	Fan, air-conditioning system
F06/04	10 A	Windshield wiper
F06/05	10 A	Rear window wiper
F06/06	10 A	Plug for front loader, back-up alarm
F06/07	10 A	Beacon light
F06/08	10 A	Dome light
F06/09	10 A	Radio
F06/10	10 A	Horn
F06/11	10 A	Cigarette lighter
F06/12	10 A	Operator's seat
F06/13	30 A	Front grille headlights
F06/14	15 A	High beam (front grille headlights)
F06/15	30 A	Front grille headlights and headlights on cab frame
F06/16	15 A	High beam (front grille headlights and headlights on cab frame)
