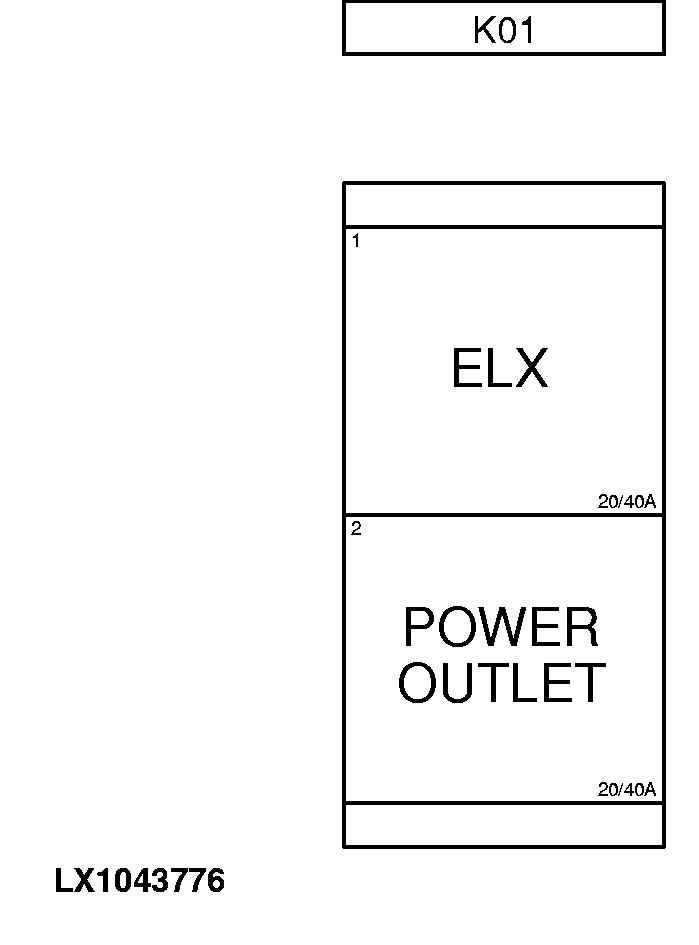

Relays K01 (with Cab)

LX1043776-UN-20JUL07

Number	Capacity (amps)	Designation
K01/1	20/40 amps	Relay for power supply to electronics
K01/2	20/40 amps	Relay for 3-terminal socket, power outlet strip, 7-terminal socket (SAE) Relay for 3-terminal socket, power outlet strip (ECE)
