Vehicle Controls

LX1043827-UN-20AUG07

LX1043828-UN-20AUG07

Tractors with PowrQuad transmission

LX1043829-UN-20AUG07

Tractors with low-profile platform

A - Clutch pedal

B - Hazard warning light switch

C - Light switch

D - Turn signal lever

E - Reverser lever

F - Travel speed

G - Tachometer

H - Windshield wiper switch

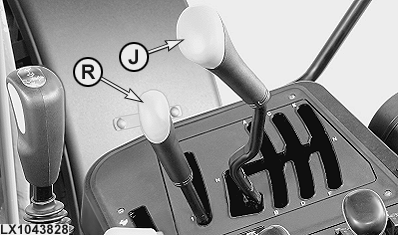

J - Range shift lever

K - Gear shift switches

L - Hand throttle

M - Gear shift switch (extra)

N - Accelerator pedal

O - Main (key) switch

P - Left and right brake pedals

Q - Differential lock

R - Gear shift lever
