Light Switches (Tractors with Cab)

LX1043831-UN-21AUG07

LX1043832-UN-21AUG07

L102655-UN-15AUG94

CAUTION: Comply with local lighting regulations.

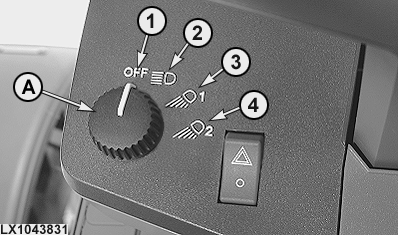

Light switch (A) can be set to the following positions:

• 1 = Light switch in “off” position
• 2 = Headlights, tail lights and warning lights “on”
• 3 = Headlights “on”
• 4 = Headlights “on” and worklights can be switched on

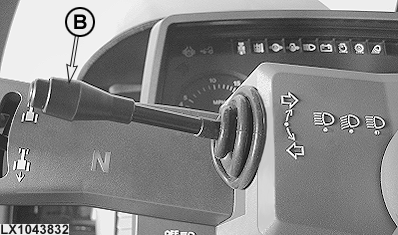

Switch headlights to “low beam” or “high beam” position by means of switch (B).

• Pull switch toward steering wheel = Headlight flasher (“flash-to-pass”)
• Switch in center = Low beam
• Push switch away from steering wheel = High beam

Indicator light (C) will glow when headlight switch is in “high beam” position.
