Worklight Switches (Tractors with Cab)

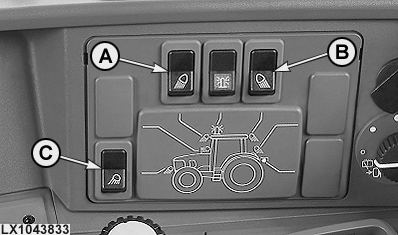

LX1043833-UN-21AUG07

A - Front roof worklights

B - Rear roof worklights

C - Front corner worklights (if equipped)

The worklights can be switched on and off using the switches shown here. The main light switch must first be set to position 4.
