Light Switches (Tractors without Cab)

LX1043834-UN-21AUG07

L102655-UN-15AUG94

CAUTION: Comply with local lighting regulations.

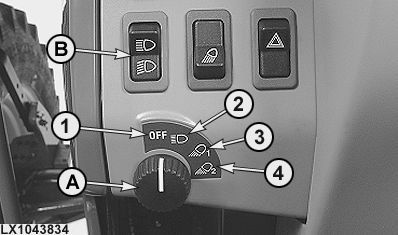

Light switch (A) can be set to the following positions:

• 1 = Light switch in “off” position
• 2 = Headlights, tail lights and warning lights “on”
• 3 = Headlights “on”
• 4 = Headlights “on” and
• Worklight on, if the tractor is equipped with only one worklight
• Worklights may be switched on, if the tractor is equipped with more than one worklight

Switch headlights to “low beam” or “high beam” position by means of switch (B).

• Switch down = Low beam
• Switch up = High beam

Indicator light (C) will glow when headlight switch is in “high beam” position.
