Seven-Terminal Trailer Socket

LX1043846-UN-21AUG07

RW21249-UN-17JUN92

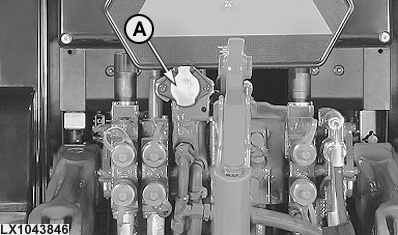

Socket (A) allows lights, turn signals and other electrical equipment on a trailer or implement to be connected. Always use additional lighting on a mounted implement if this conceals the turn signals and other lights at the rear of the tractor.

NOTE: Suitable plugs can be obtained from your John Deere dealer.

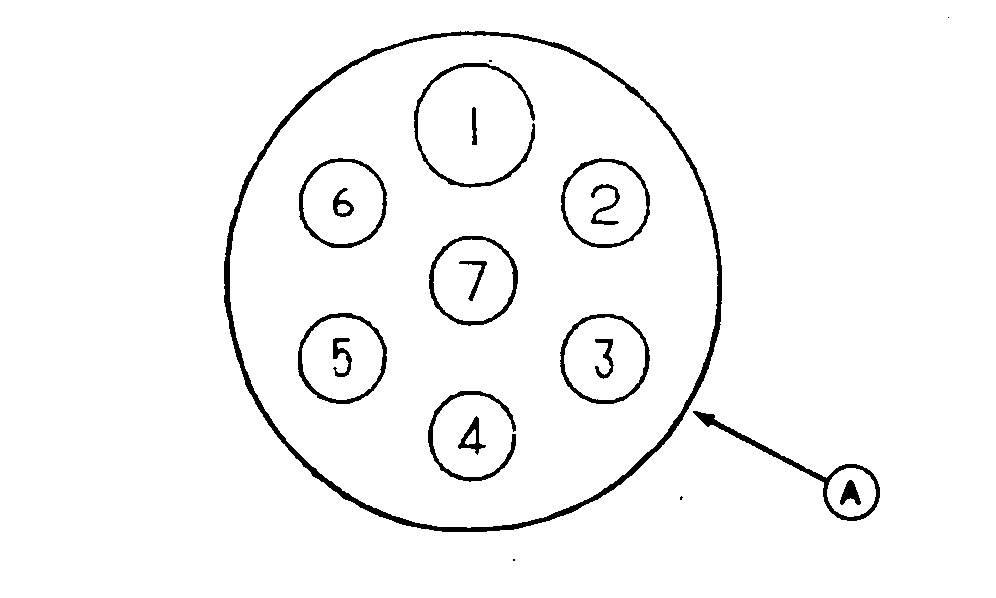

Connection	Function	Color of wire
1	Ground	Black
2	—	—
3	L.h. turn signal	Dark green
4	Accessories	Red
5	R.h. turn signal	Purple
6	Tail lights	Gray
7	Accessories	Red
