Open Windows

Normal cab

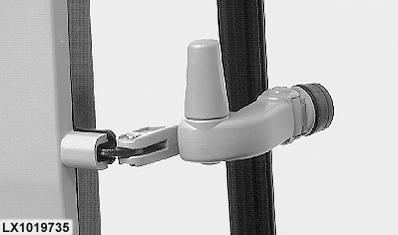

LX1019735-UN-08FEB00

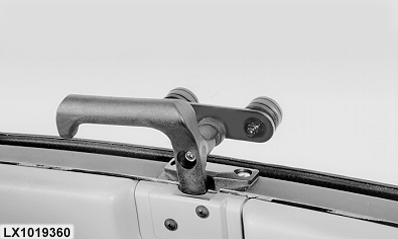

LX1019360-UN-15MAY98

The side and rear windows can all be opened for better ventilation.

Low-clearance cab

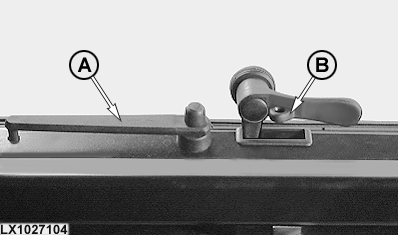

LX1027104-UN-15FEB02

On this cab, only the rear window can be opened.

To open the window partially, turn lever (A) through approx. 90 degrees and insert the pin in hole (B).
