Shift the PowrQuad Transmission

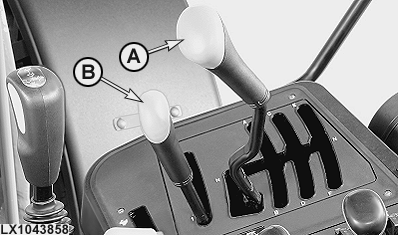

LX1043858-UN-23AUG07

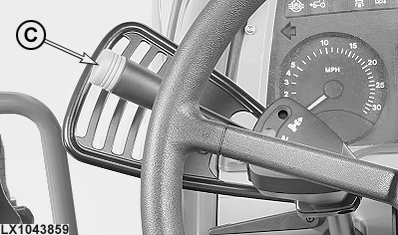

LX1043859-UN-23AUG07

A - Range shift lever

B - Gear shift lever

C - Reverser lever

Gears are shifted using range shift lever (A), gear shift lever (B) and reverser lever (C).

NOTE: Once the engine has started, wait for 5 seconds before moving reverser lever (C) out of neutral position.

The clutch pedal must be depressed to change the ranges. There is no need to depress the clutch pedal to shift gears or to change the direction of travel.

CAUTION: If the reverser lever is actuated when the engine is running and a range is selected, the tractor will start to move.

IMPORTANT: Engage park only when the tractor is stationary.

Optimum gear-shifting for driving under load (transport):

1. Select a range suitable for driving under load.
2. Engage the first gear.
3. Drive and shift up through the ranges until the top range is reached.
4. Shift up through the gears.
