Direct Actuation

LX1043862-UN-17SEP07

In the event of electrical failure, the hitch can be controlled as follows:

Run the engine. Take off the protective cap.

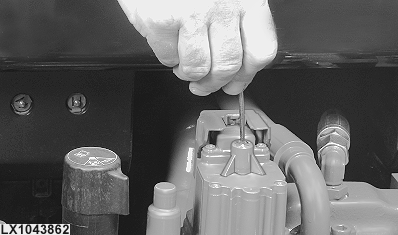

From the operator's seat, press down the screw with a screwdriver until it engages in the detent, and then turn to the right until the three-point hitch rises.

See your John Deere dealer.
