Center Link

LX1029245-UN-05MAY03

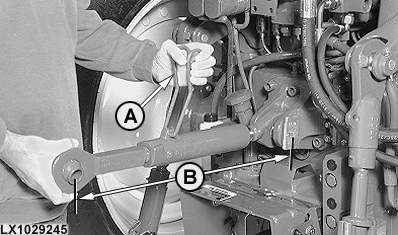

Length of center link can be adjusted using adjusting handle (A). Lift adjusting handle (A) and turn it until the required length is achieved.

• Minimum length 530 mm (20.9 in.)
• Maximum length 725 mm (28.5 in.)

Do not deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.
