PTO Operation

LX1043868-UN-24AUG07

CAUTION: Always disengage the PTO when not in use.

CAUTION: High-inertia implements do not stop the moment the PTO control lever is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

The PTO can be engaged and disengaged on-the-go and under load. When the PTO is switched on, an indicator light will glow on the dashboard.

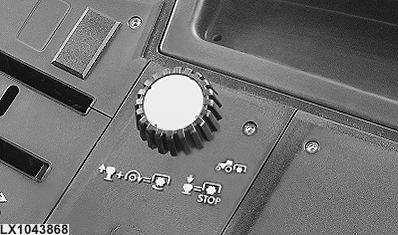

To switch on the PTO, lift up the switch button and turn it to the right. To switch off the PTO, press the button down.

NOTE: An audible signal is emitted and an indicator light flashes on the dashboard if the operator leaves the operator's seat while the PTO is engaged. The PTO does not disengage when operator leaves seat.

NOTE: If the engine is shut off and then restarted while the PTO is running, the PTO will not operate. Even so, the indicator light remains on. Switch off PTO and then restart.
