Levers for Mechanical Selective Control Valves

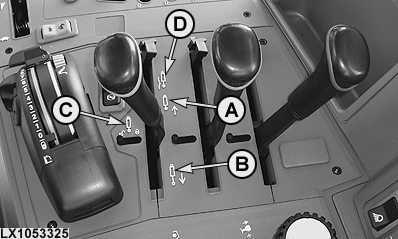

Control lever positions

LX1053325-UN-07NOV11

(A) - Retract

The remote cylinder retracts when the lever is moved to the Retract position.

(B) - Extend

The remote cylinder extends when the lever is moved to the Extend position.

(C) - Neutral

The remote cylinder is held in place when the lever is in Neutral.

(D) - Float

When the lever is in the Float position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

CAUTION: With 100 Series selective control valves, the extend and retract functions have a mechanical detent. When starting the engine, make sure that the control levers are in neutral.

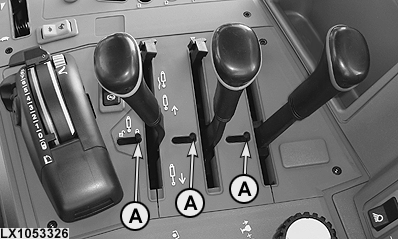

Transport lock

LX1053326-UN-07NOV11

CAUTION: Use locks (A) to lock the control levers when driving on roads and whenever the control levers are in neutral because they are not required. If this is not done, the control levers may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.
