Couplers

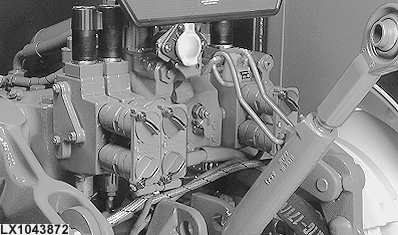

LX1043872-UN-17SEP07

DeLuxe couplers

CAUTION: The hydraulic system has a maximum system pressure of 20000 kPa (200 bar; 2900 psi). For your own protection and to assure proper functioning of the system, use only genuine John Deere parts.

There are two variants of coupler, both of which operate as breakaway couplers and comply with ISO Norm 5675. On the Standard version, the connection can be broken even if there is still pressure on the implement side. On the DeLuxe version, the connection can be broken even if there is still pressure on the implement side and/or at the SCV.

If a malfunction or accident causes the hose to break loose from the coupler, the oil flow through the coupler is stopped immediately.

To connect the hose union, press it firmly into the coupler.

NOTE: When the control lever is pushed forward (or to the right in the case of the multi-function lever), the pressure is applied to the upper coupler.

To disconnect the hose, give it a firm pull.
