Check Transmission/Hydraulic System Oil Level

LX1042999-UN-10JUL07

LX1037219-UN-21OCT05

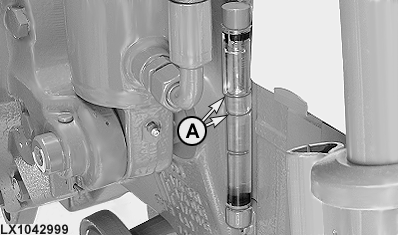

A - Sight glass (l.h. side of transmission)

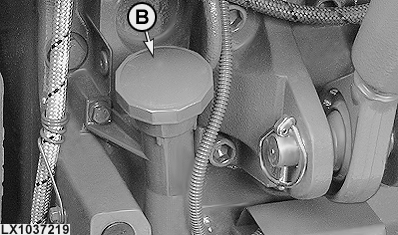

B - Filler neck

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

1. Park tractor so that it is level.

2. Engage the park lock.

3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

4. Oil level should be between marks (A) on the sight glass. If it is not, add more oil at filler neck (B).
